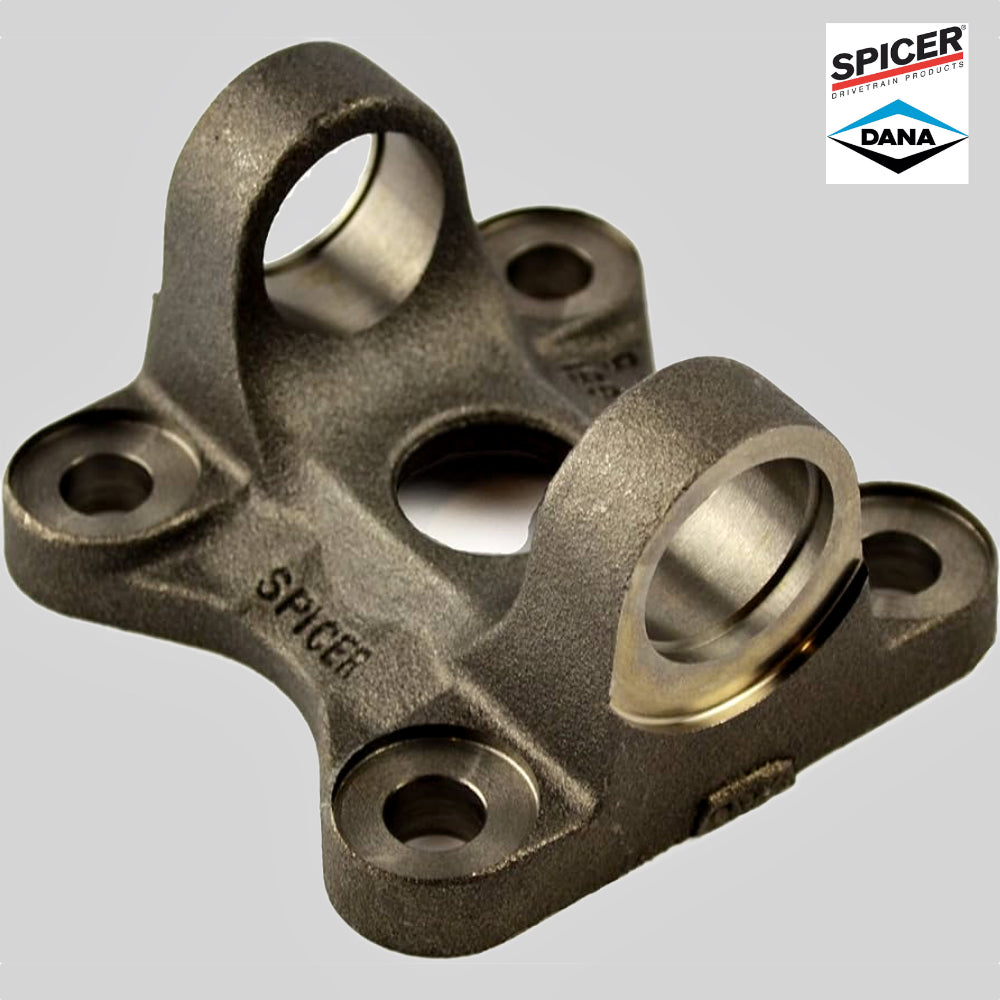

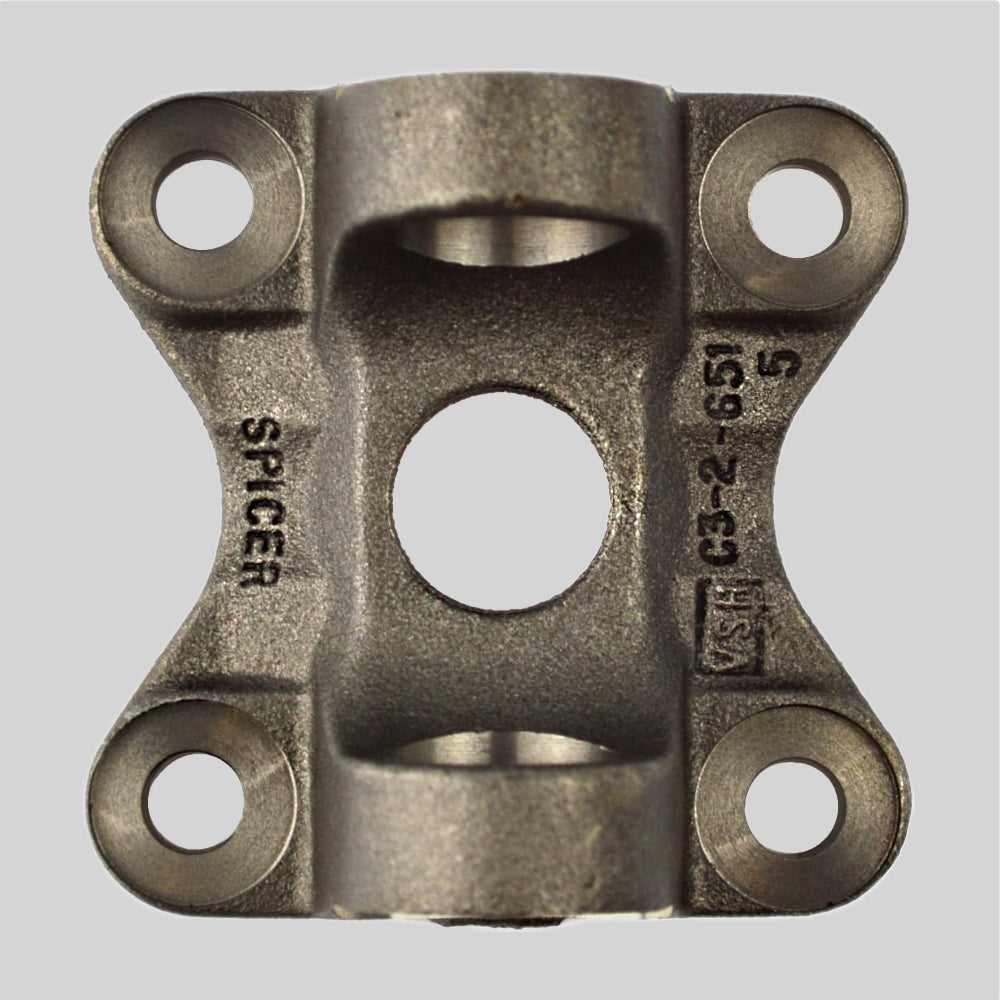

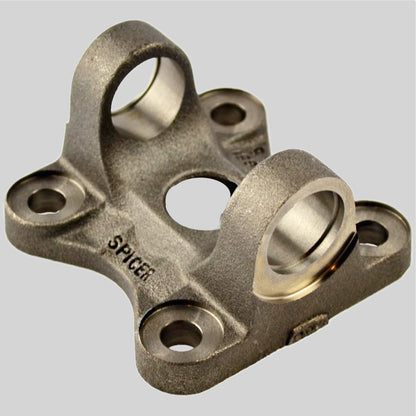

3-2-1879 Spicer Flange 1350 Series, 3.005 x 3.005, 2.560F Pilot, Drilled Titan
3-2-1879 Spicer Flange 1350 Series, 3.005 x 3.005, 2.560F Pilot, Drilled Titan
Brand: Spicer
Couldn't load pickup availability
You are buying Brand New Genuine Spicer 3-2-1879
Nissan Titan 5.6 4WD
Brand Spicer
Series 1350 (1.188 x 3.625)
Flange Or Swing Dia. In. (A) 5.250
Bolt Circle Dia. In. (B) 4.250
Bolt Hole Dia. In (B) .500 - DRILLED
Number Of Bolt Holes 4
Pilot Dia. M=Male F=Female (C)
2.560 - FEMALE
Flange Face To C/L In. (G) 1.618
Material Steel
Outside Yoke Dimension In.(E) 3.875
Yoke Bearing Dimension In. (D) 1.888
Centerline to centerline 3.005 x 3.005"
Design Square
VMRS 024002016
