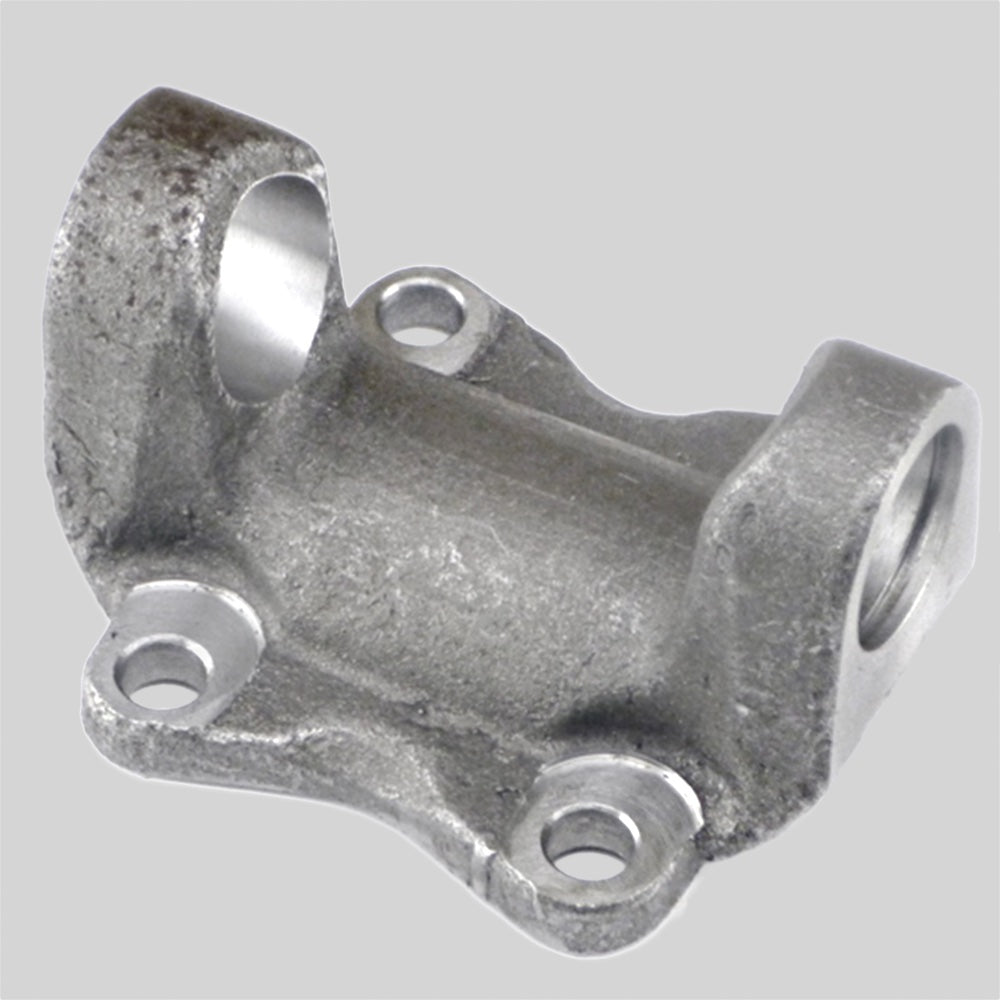

3-2-159 Driveshaft Flange Yoke 1410 series, 4x .438 Holes on 3.750BC, 2.750M
3-2-159 Driveshaft Flange Yoke 1410 series, 4x .438 Holes on 3.750BC, 2.750M

3-2-159 Driveshaft Flange Yoke 1410 series, 4x .438 Holes on 3.750BC, 2.750M

SKU: 3-2-159-EB-USA-M
Regular price
Sold out
Sale price
$28.71
Shipping calculated at checkout.

Driveshaft Flange Yoke for:

1410 series, 4x .438 Holes on 3.750BC, 2.750M pilot

Interchanges with OEM: 141N-2-159, N3-2-159

Compatible with: 5-160X, 5-1410X

For help with measurements, match the corresponding letter to the below diagram.




Design Style:                                                                      Snap Ring Design

U-Joint Series:                                                                    1410

Universal Joint Retaining Width:                                       4.438

Universal Joint Bearing Diameter:                                     D 1.188

Flange Diameter:                                                                A 4.625

Bolt Circle Diameter:                                                         B 3.750

Horizontal Distance Between Holes (center to center):     2.410

Vertical Distance Between Holes (center to center):          2.873

Bolt Hole Diameter:                                                           .438-D

Bolt Hole Quantity:                                                            4.000

Pilot Diameter (M-Male, F-Female):                                 C 2.750M

Centerline of Joint to Flange Face:                                     G 1.688
