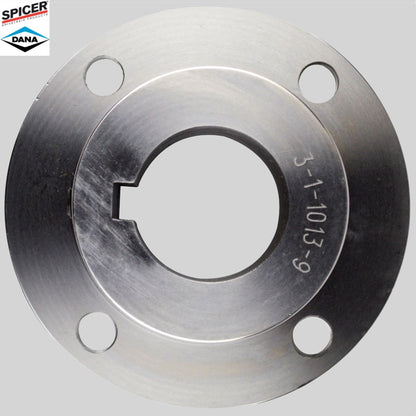

3-1-1013-9 Spicer Driveshaft Circular Companion Flange 1350 Series Made in USA

3-1-1013-9 Spicer Driveshaft Circular Companion Flange 1350 Series Made in USA

Part # / SKU: 3-1-1013-9S

Brand: Spicer

Regular price $98.02 USD
Regular price Sale price $98.02 USD
Sale Sold out
Shipping calculated at checkout.
Stock Available: 1

Brand Spicer

Flange Type Circular

Series 1350

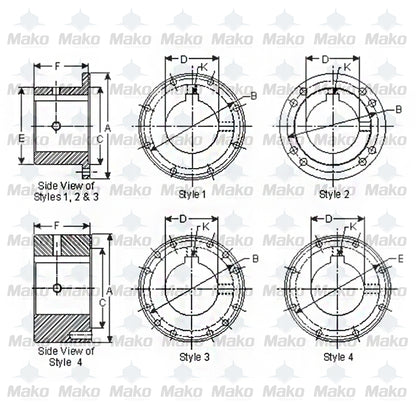

Flange Width Diameter (A) In. 4.56

Bolt Circle Diameter (B) In. 3.750

Number Of Holes 4

Bore Diameter (D) In. 1.625

Key Width (K) In. 0.375

Pilot Diameter (C) In. 2.750 - FEMALE

Set Screw Hole Diameter In. 0.375

Hub Diameter (E) In. 2.875

Circ Flnge Face To End Of Hub 2.000

Bolt Hole Diameter (In.) .438 - DRILLED

Actual Hole Diameter (Max) 1.626

Actual Hole Diameter (Min) 1.625


Care Instructions

All of our parts are packaged to the best of our ability. If you receive an item with inferior packaging, please let us know so that we can improve the delivery and our service to you as the customer

Shipping & Returns

This item can be returned within 30 days of purchase. You are responsible for returning the item. No returns are accepted if rubber boots have been torn or damaged during installation. Please contact us if you are unsure of fitment prior to purchase

All orders received before 1pm EST should ship out on the same day that the purchase has been completed

Shipping is calculated on Business Days Only

We do not ship on weekends nor do we offer weekend deliveries

We offer Next Day shipping options, however do not accept liability
for delays encountered outside of our control such as courier delays or
weather conditions

For a shipping requirement not shown on the checkout page please contact us for more options

We do offer an LTL Freight service if required for large orders

We do offer International Shipping however we may be restricted depending on your region

View full details
  • Check the OEM # of your part before you purchase

    If you have no idea what the original part number is for your Driveshaft, CV Joint or Component - contact us for the appropriate diagram or for assistance. We are here to help!

For orders with a cart value over $1000 contact us using the chat button below to reduce your shipping costs using our freight service
