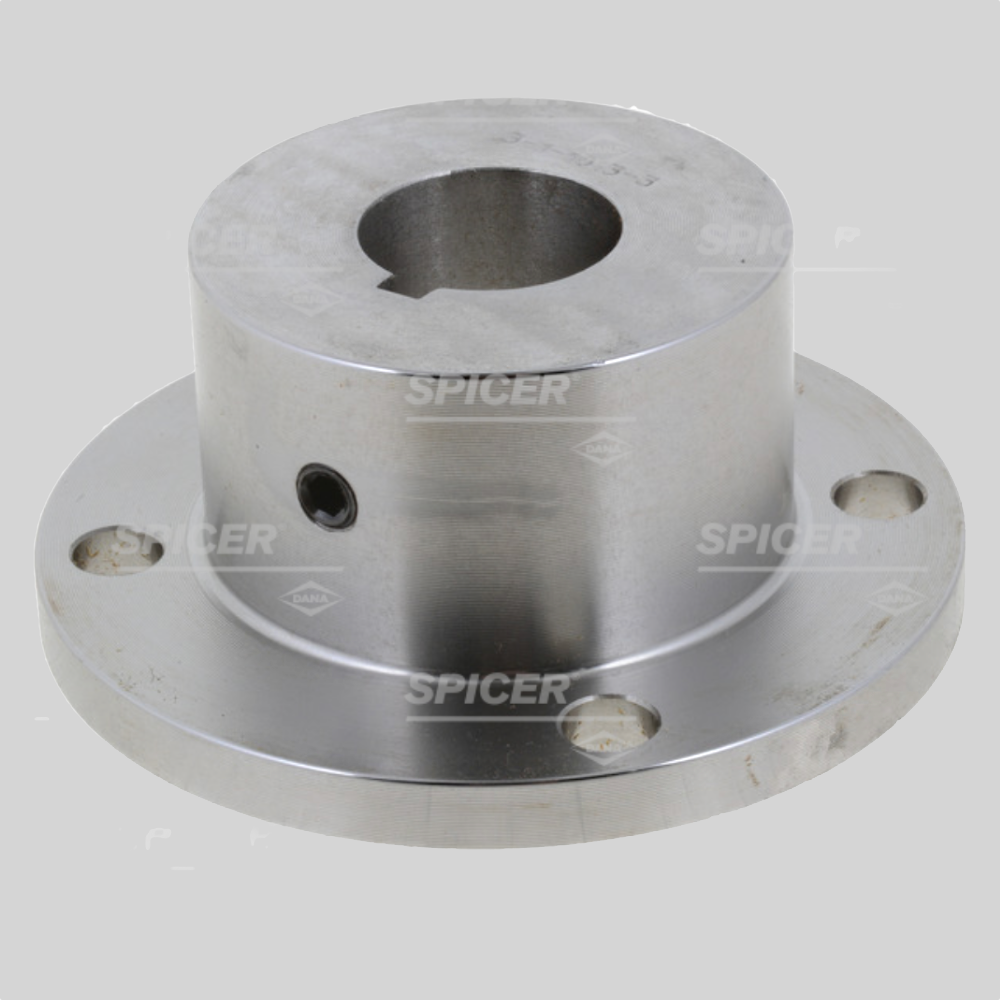

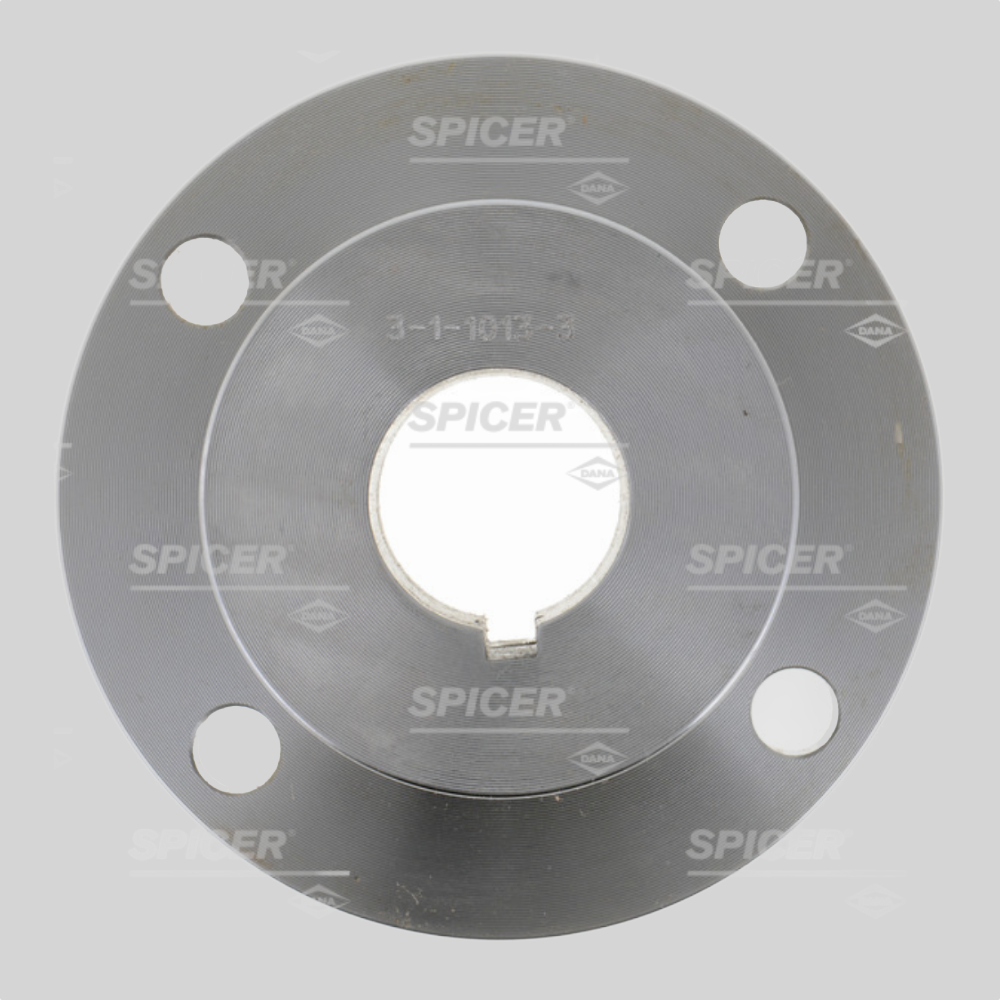

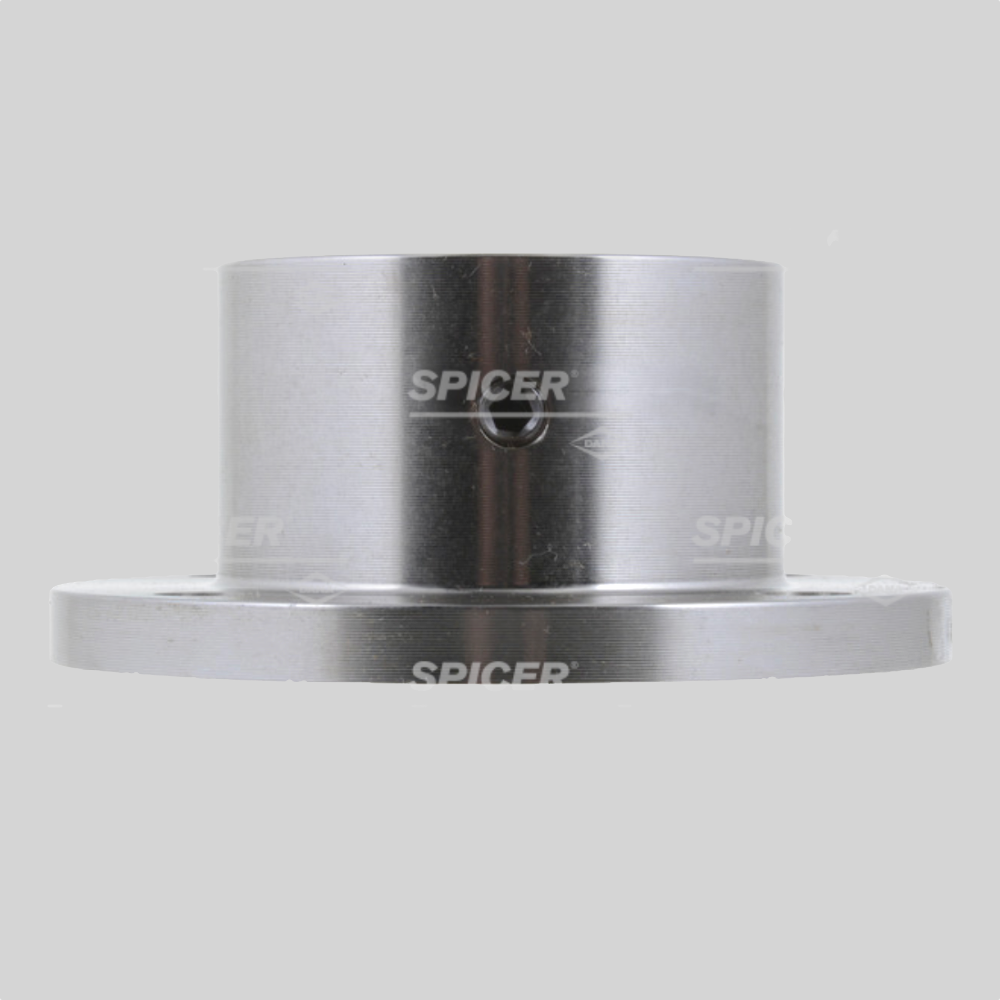

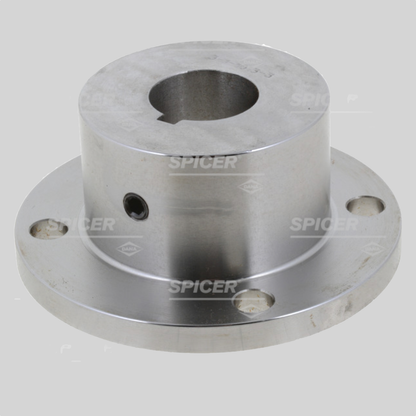

3-1-1013-3 Spicer Driveshaft Circular Companion Flange 1350 Series Made in USA
3-1-1013-3 Spicer Driveshaft Circular Companion Flange 1350 Series Made in USA
Brand: Spicer
Brand Spicer
Flange Type Circular
Series 1350

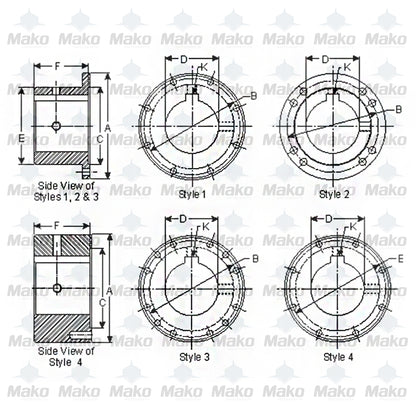

Flange Width Diameter (A) In. 4.56
Bolt Circle Diameter (B) In. 3.750
Number Of Holes 4
Bore Diameter (D) In. 1.250
Key Width (K) In. 0.250
Pilot Diameter (C) In. 2.750 - FEMALE
Set Screw Hole Diameter In. 0.375
Hub Diameter (E) In. 2.875
Circ Flnge Face To End Of Hub 2.000
Bolt Hole Diameter (In.) .438 - DRILLED
Actual Hole Diameter (Max) 1.251
Actual Hole Diameter (Min) 1.250
