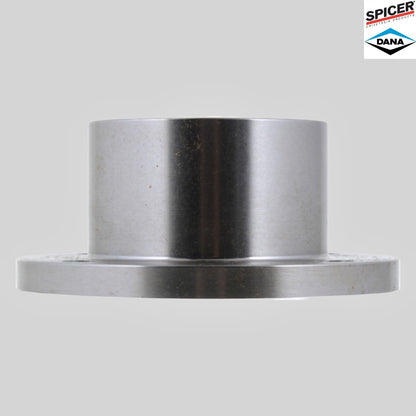

3-1-1013-1 Spicer Driveshaft Circular Companion Flange 1350 Series Made in USA
3-1-1013-1 Spicer Driveshaft Circular Companion Flange 1350 Series Made in USA
Couldn't load pickup availability
Brand Spicer
Flange Type Circular
Series 1350

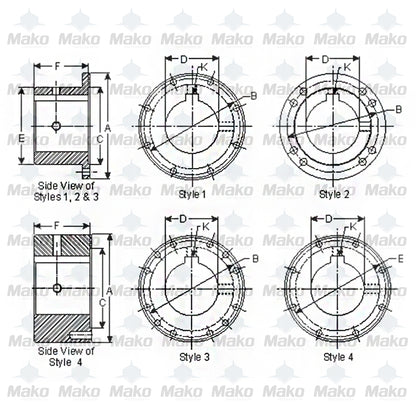

Flange Width Diameter (A) In. 4.56
Bolt Circle Diameter (B) In. 3.750
Number Of Holes 4
Bore Diameter (D) In. 1.000
Key Width (K) In. 0.250
Pilot Diameter (C) In. 2.750 - FEMALE
Set Screw Hole Diameter In. 0.375
Hub Diameter (E) In. 2.875
Circ Flnge Face To End Of Hub 2.000
Bolt Hole Diameter (In.) .438 - DRILLED
Actual Hole Diameter (Max) 1.001
Actual Hole Diameter (Min) 1.000
