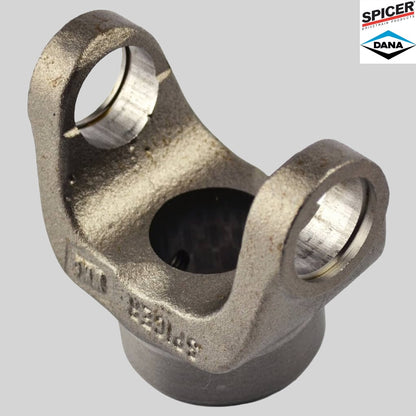

2-4-573 1310 Series Spicer End Yoke Ø1.250 Round Bore w/0.25 keyway, Ø2.125 hub
2-4-573 1310 Series Spicer End Yoke Ø1.250 Round Bore w/0.25 keyway, Ø2.125 hub
Couldn't load pickup availability
2-4-573 1310 Spicer Ø1.250 Bore w/0.25 keyway, Ø2.125 hub
Brand Spicer
Series 1310

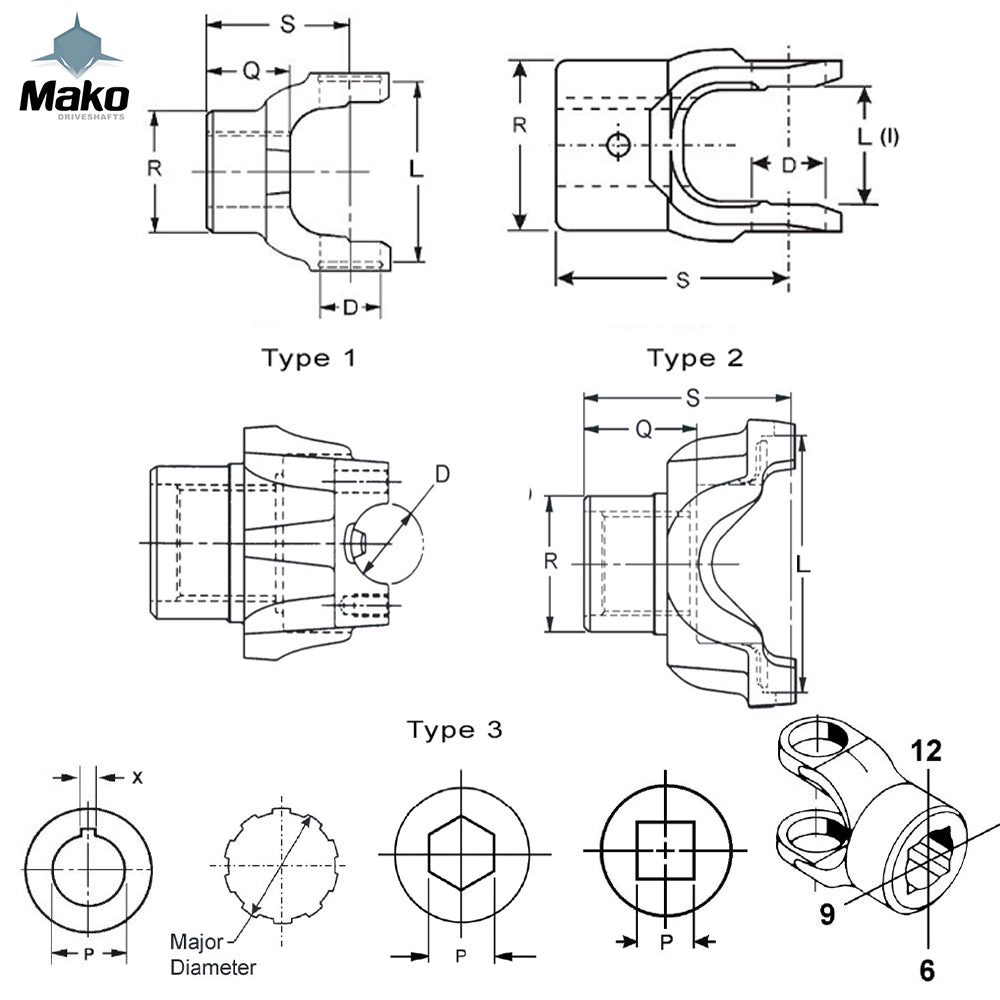

Yoke Style SR
Hub Diameter R 2.125
C/L To End Hub S 2.562
Type Straight Round Hole
Outside Yoke Dimension (In) E 3.469
Yoke Bearing Dimension (In) D 1.062
Involute Spline N
Hole Diameter (In) P 1.250
Sae Keyway Width (In) X 0.250
Set Screw Hole Diameter (In) 0.375
Keyway Location W 12
Set Screw Location W 6
VMRS 024001003
Material Steel
Joint Angle #1 17
Hole Diameter - Max 1.2505
Hole Diameter - Min 1.2495
Keyway Width - Max 0.253
Keyway Width - Min 0.251
Weight 1.81 LB
Country of Origin United States
