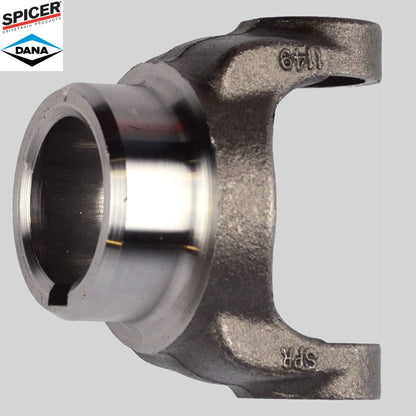

2-4-1233 SPICER End Yoke 1310 Series 1.500" Round Bore 2.562" C/L to End

2-4-1233 SPICER End Yoke 1310 Series 1.500" Round Bore 2.562" C/L to End

Part # / SKU: 2-4-1233S

Brand: Spicer

Regular price $92.22 USD
Regular price Sale price $92.22 USD
Sale Sold out
Shipping calculated at checkout.
Stock Available: 0
Brand Spicer

Series 1310

Yoke Style SR

Hub Diameter R 2.125

C/L To End Hub S 2.562

Type Straight Round Hole

Outside Yoke Dimension (In) E 3.469

Yoke Bearing Dimension (In) D 1.062

Involute Spline No

Hole Diameter (In) P 1.500

Sae Keyway Width (In) X 0.375

Set Screw Hole Diameter (In) 0.375

Keyway Location W 12

Set Screw Location W 6

Joint Angle #1 17

Hole Diameter - Max 1.5005

Hole Diameter - Min 1.4995

Keyway Width - Max 0.375

Keyway Width - Min 0.374

Care Instructions

All of our parts are packaged to the best of our ability. If you receive an item with inferior packaging, please let us know so that we can improve the delivery and our service to you as the customer

Shipping & Returns

This item can be returned within 30 days of purchase. You are responsible for returning the item. No returns are accepted if rubber boots have been torn or damaged during installation. Please contact us if you are unsure of fitment prior to purchase

View full details

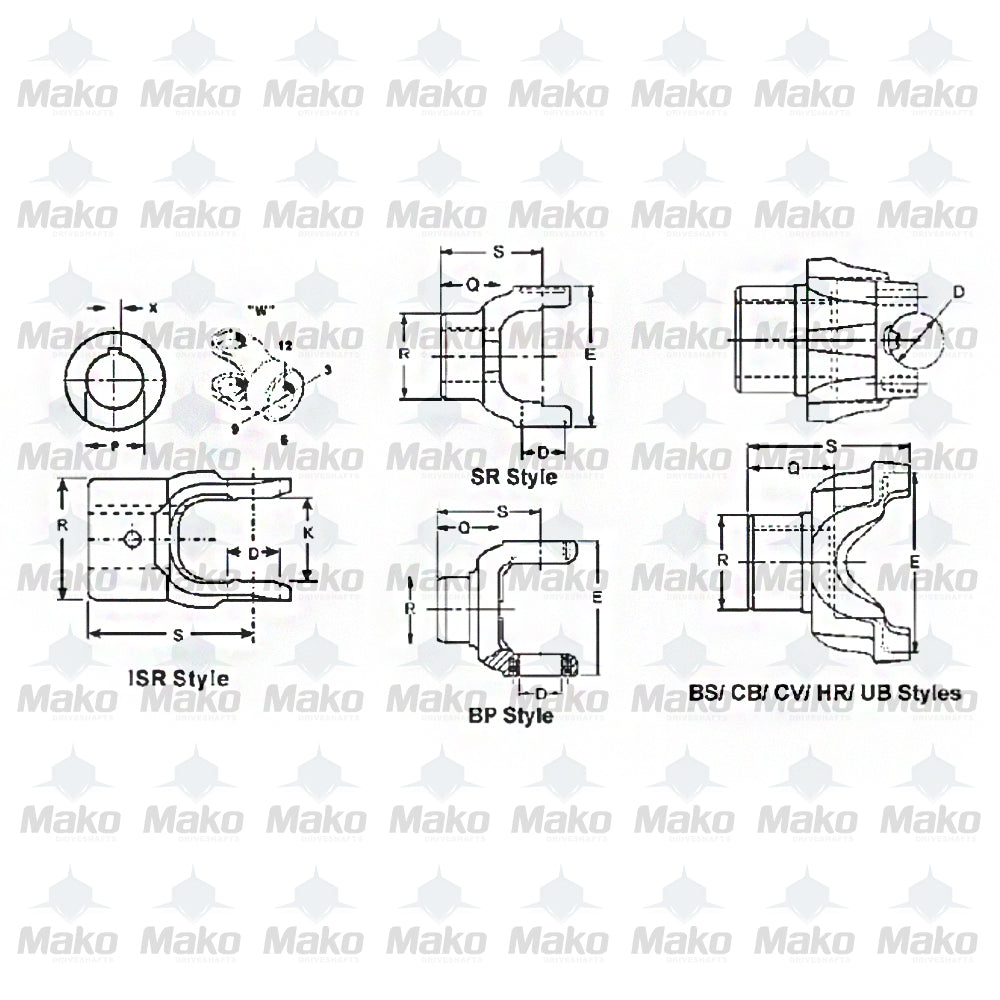

End Yoke Diagram

  • Check the OEM # of your part before you purchase

    If you have no idea what the original part number is for your Driveshaft, CV Joint or Component - contact us for the appropriate diagram or for assistance. We are here to help!
