170-2-15 Spicer SPL170 Series Driveshaft Flange Yoke 4 x .551" Bolt Holes
170-2-15 Spicer SPL170 Series Driveshaft Flange Yoke 4 x .551" Bolt Holes
Couldn't load pickup availability
|
Brand |
Spicer |
|
Series |
SPL170 |
|

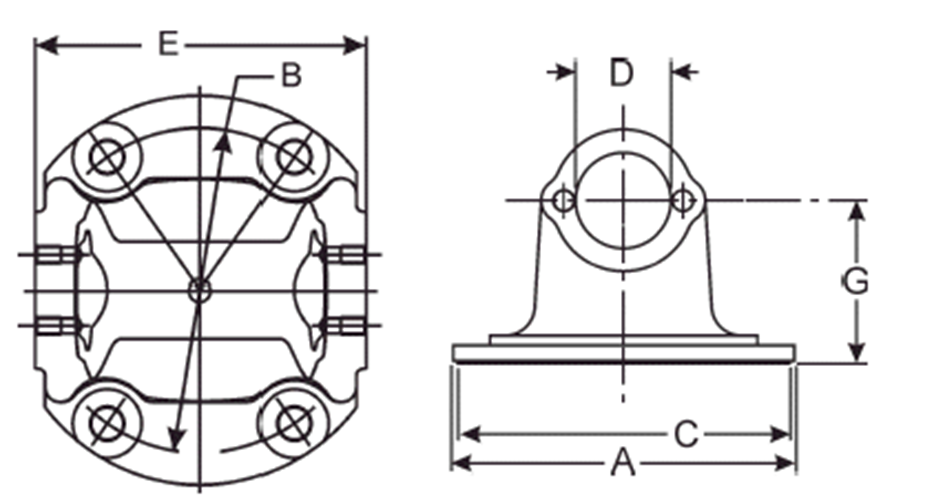

Flange Or Swing Dia. In. (A) |
7.087 |
|
Bolt Circle Dia. In. (B) |
5.906 |
|
Bolt Hole Dia. In (B) |
.551 - DRILLED |
|
Number Of Bolt Holes |
4 |
|
Flange Face To C/L In. (G) |
3.425 |
|
Material |
Steel |
|
Outside Yoke Dimension In.(E) |
6.026 |
|
Yoke Bearing Dimension In. (D) |
2.166 |
|
Design |
Rectangular |
|
VMRS |
024002016 |
|
Package Type |
EACH |
|
Package Qty |
1 |
|
Weight |
11.29 LB |
Features:
One year warranty
Fast shipping
No hassle returns
Care Instructions
Care Instructions
All of our parts are packaged to the best of our ability. If you receive an item with inferior packaging, please let us know so that we can improve the delivery and our service to you as the customer
Shipping & Returns
Shipping & Returns
This item can be returned within 30 days of purchase. You are responsible for returning the item. No returns are accepted if rubber boots have been torn or damaged during installation. Please contact us if you are unsure of fitment prior to purchase
For orders with a cart value over $1000 contact us using the chat button below to reduce your shipping costs using our freight service
-
Free Shipping
We will cover the shipping costs on this item to all the USA contiguous States. We have you covered!
-
Check the OEM # of your part before you purchase
If you have no idea what the original part number is for your Driveshaft, CV Joint or Component - contact us for the appropriate diagram or for assistance. We are here to help!
