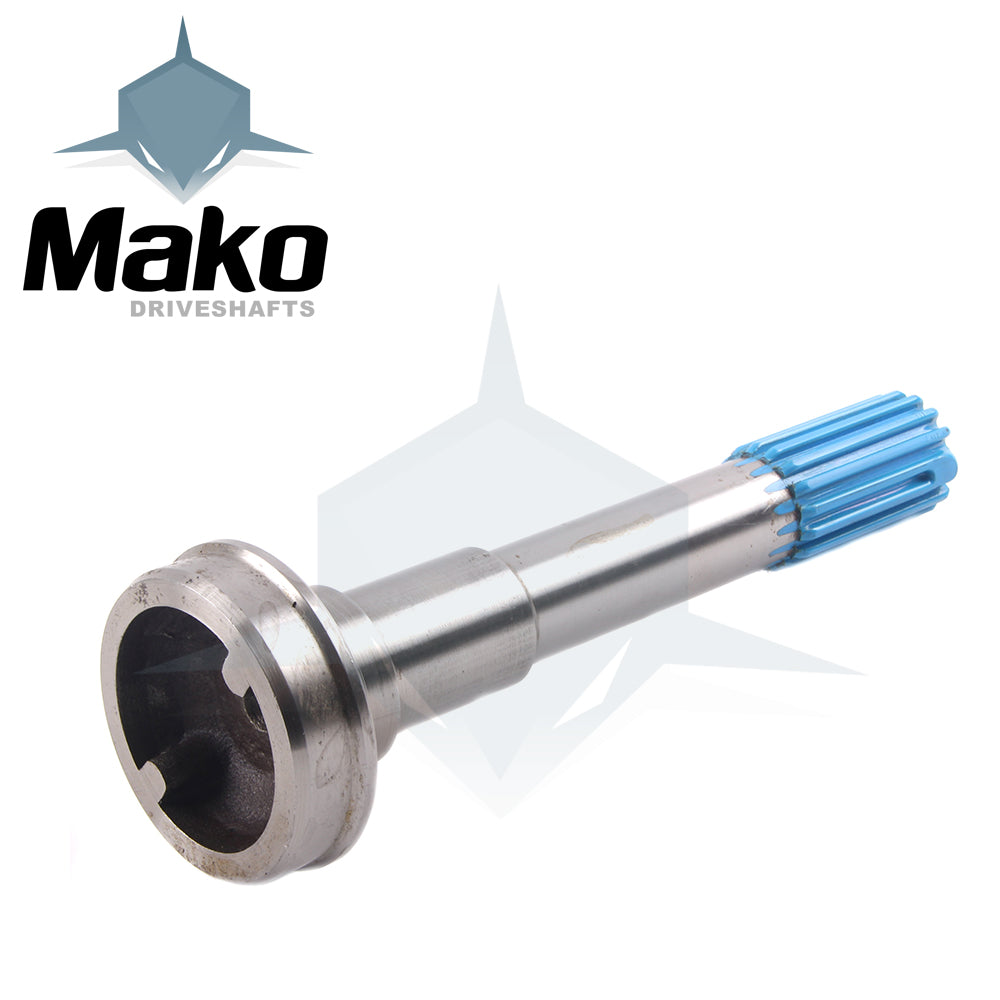

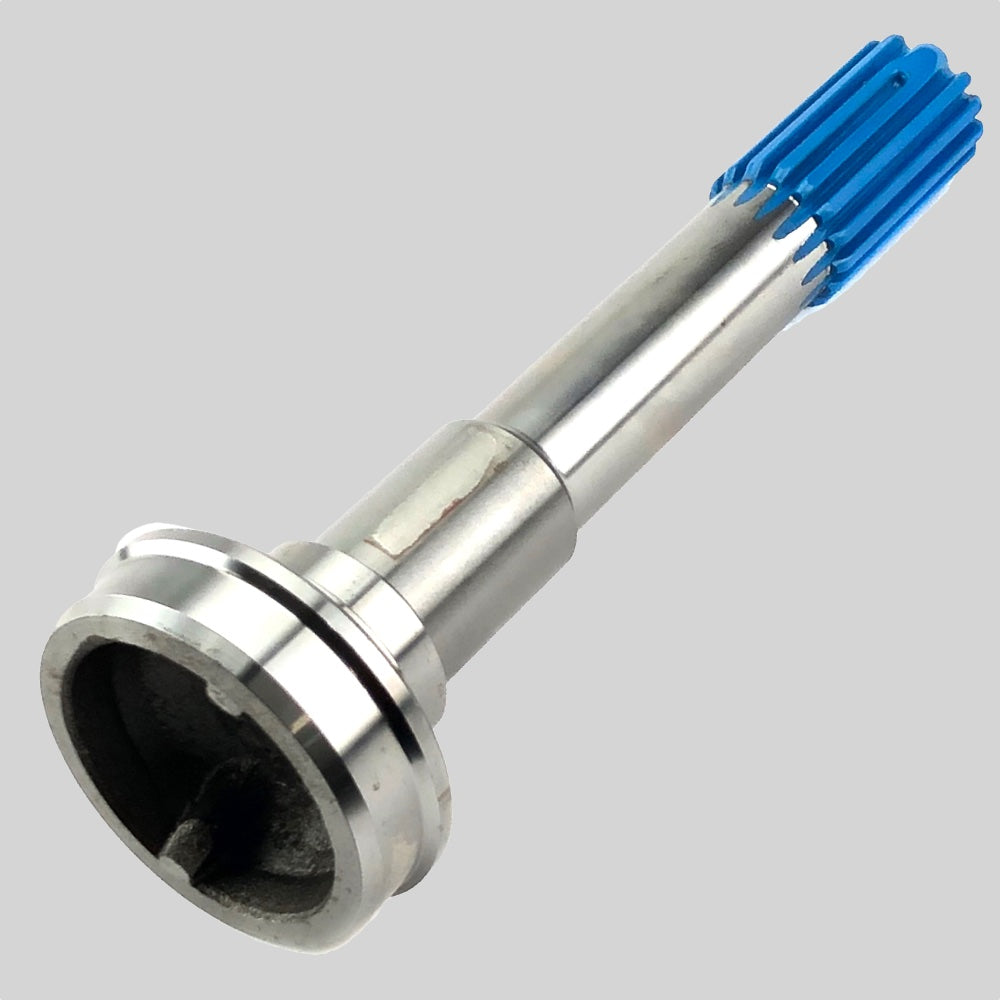

AAP 16 Splined Midship Tube Staff/Stub Staff 1.375"x16 Spline 2-53-711
|
General Design Type |
For Use with Outboard Slip Yokes |
|
Spline Major Diameter (D) |
1,375 |
|
Spline Count |
16,000 |
|
Spline Type |
15 Based on 16 Spline |
|
Bearing Diameter (C) |
1378 |
|
Tube Diameter & Wall Size |
3,000 x 0,083 |
|
End of Spline to Bearing Shoulder (Y) |
7,969 |
|
End of Spline to Point of Weld (K) |
9,031 |
|
Length of Spline (L) |
2,500 |
|
Thread Size |
|
|
Shoulder Diameter (B) |
1,688 |
|
Length of Shoulder (G) |
0,812 |
|
Compatible with Slip Yoke |
3-3-2701KX |
