10-4-641 Spicer Power Take Off PTO End Yoke 13 Spline 1000 Series .875 x 1.5 Hub
10-4-641 Spicer Power Take Off PTO End Yoke 13 Spline 1000 Series .875 x 1.5 Hub
Brand: Spicer
Couldn't load pickup availability
10-4-641 Spicer Power Take Off PTO End Yoke 13 Spline 1000 Series .875 x 1.5 Hub
Brand Spicer
Series 1000
Spline Count 13

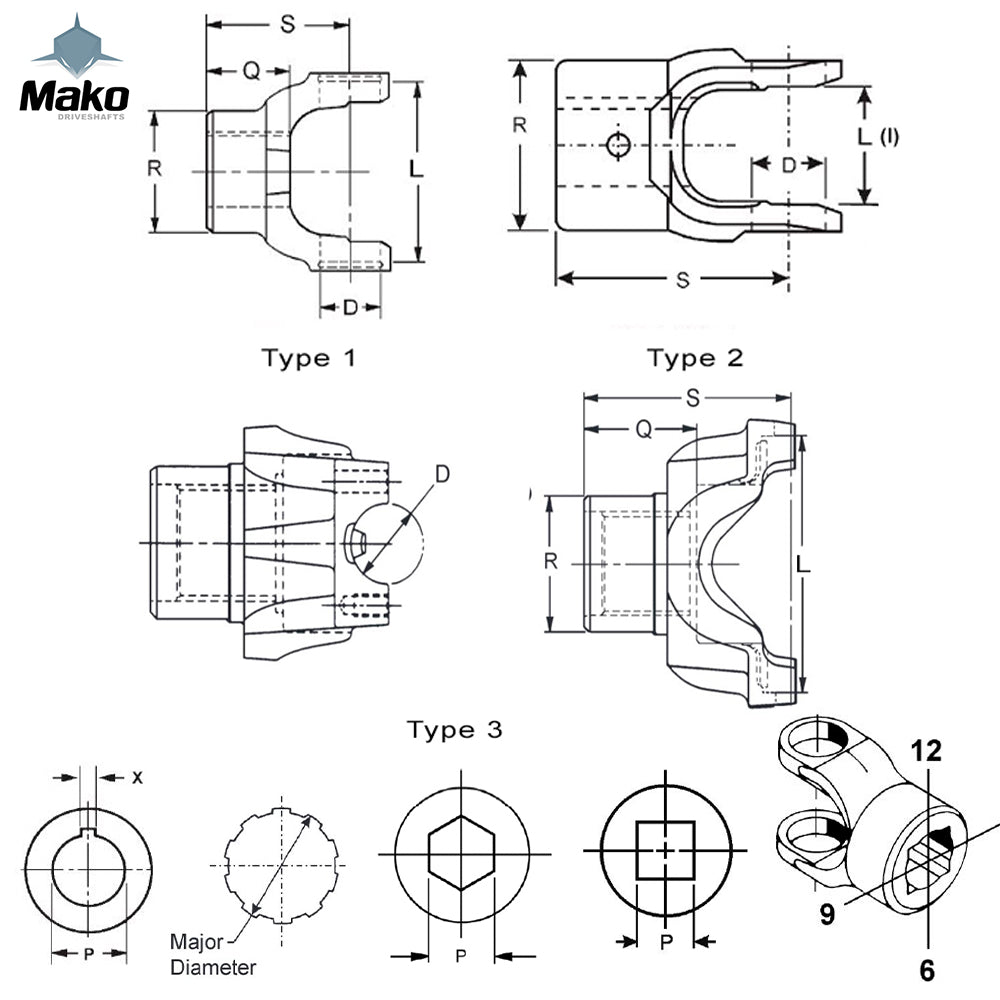

Hub Diameter R 1.500
C/L To End Hub S 3.812
Type Splined Hole
Inside Yoke Dimension (In) K 1.500
Yoke Bearing Dimension (In) D 0.938
Major Diameter 0.875
Involute Spline N
Set Screw Hole Diameter (In) 0.250
Set Screw Location W 6
VMRS 056002014
Material Steel
Weight 1.41 LB
Country of Origin United States
