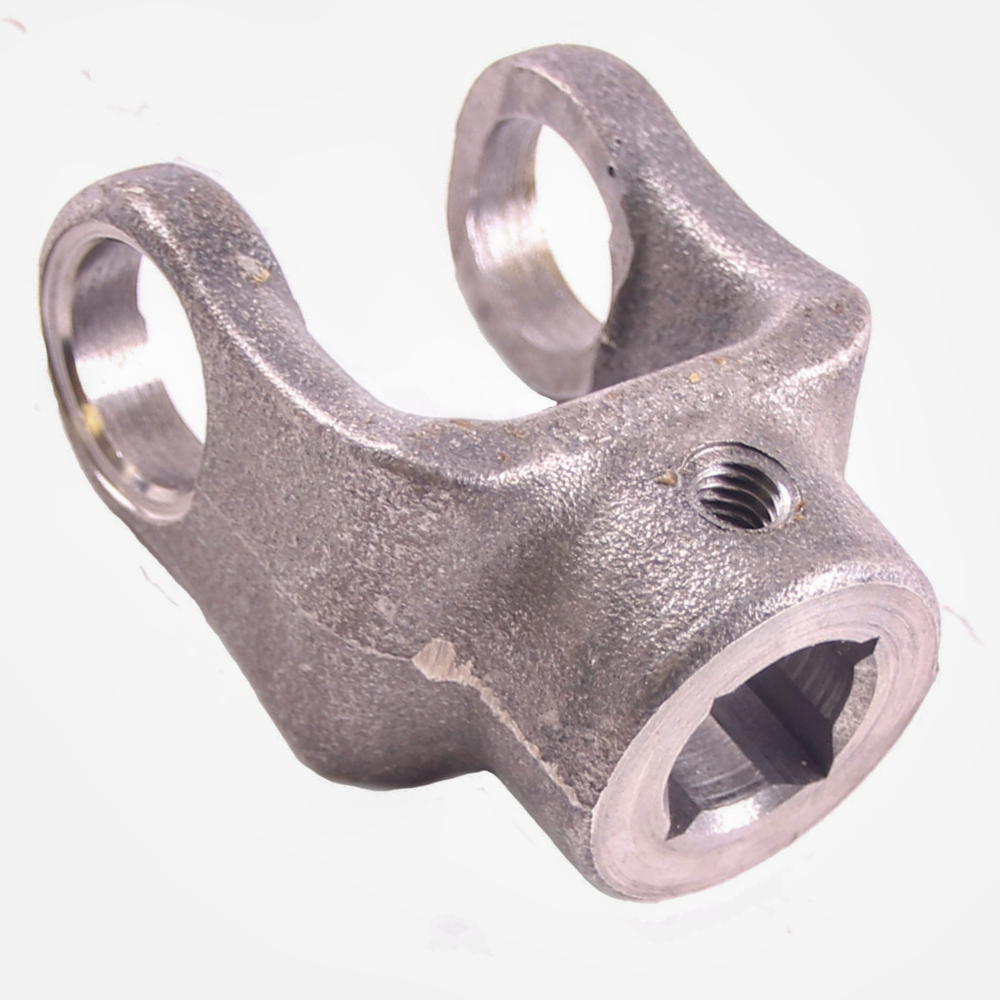

10-4-22 Driveshaft End Yoke Square Bore 1000 series .750 Bore 1.625 hub diameter

10-4-22 Driveshaft End Yoke Square Bore 1000 series .750 Bore 1.625 hub diameter

Part # / SKU: 10-4-22

Regular price $34.00 USD
Regular price Sale price $34.00 USD
Sale Sold out
Shipping calculated at checkout.
Stock Available: 1

General Design Type    Square Bore

U-Joint Series             1000

Bore Diameter   P             0.750

SAE Keyway Width X             0.000

Hub Diameter   R             1.625

Universal Joint Retaining Width E   1.500

Universal Joint Bearing Diameter D  0.938

Length Thru Bore  Q             0.000

Centerline of Joint to End of Hub S 2.500

Set Screw Thread    0.375

Keyway Location

Set Screw Location

Clock position viewed at Hub End and Keyway at 12  W:  3
