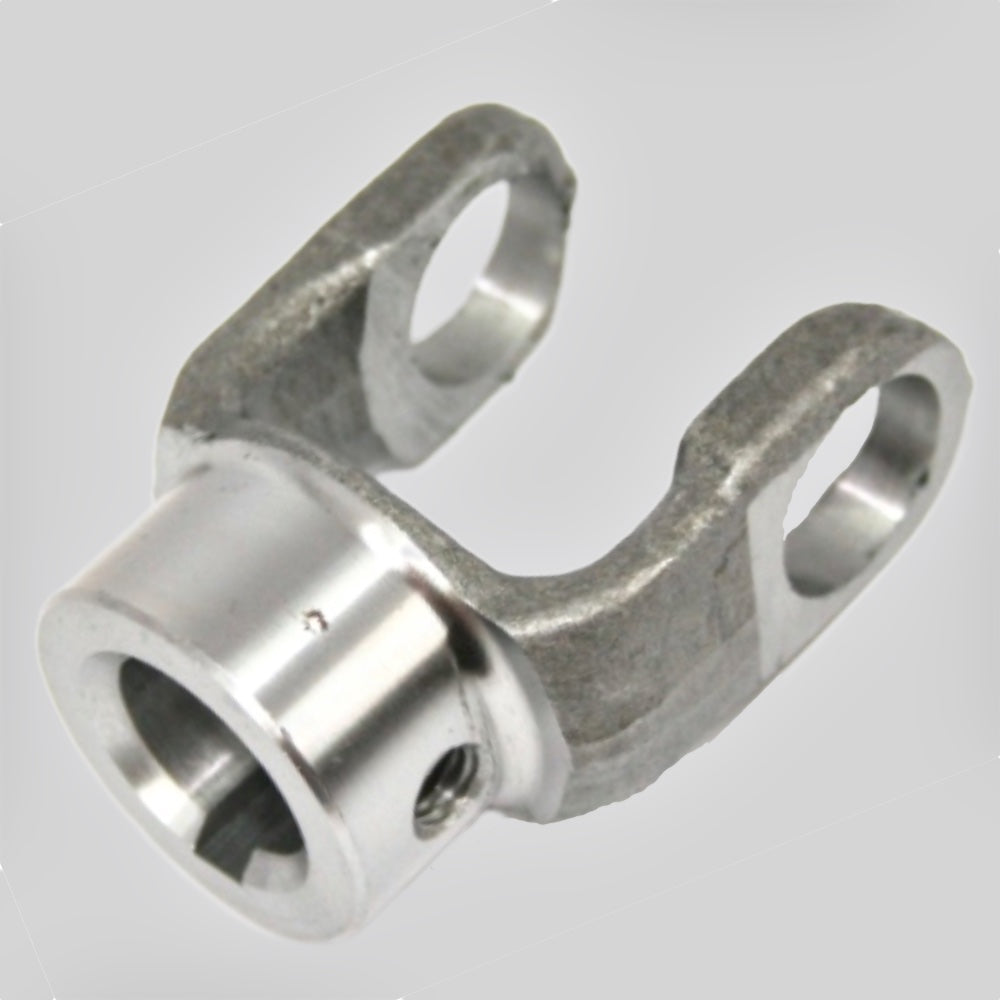

10-4-123 Driveshaft Power Take Off (PTO) End Yoke Round Bore 1000 series
10-4-123 Driveshaft Power Take Off (PTO) End Yoke Round Bore 1000 series
Couldn't load pickup availability
You are buying a Brand New End Yoke
To be used with universal joint 5-170X
See our other listing for a kit
|
Series |
1000 |
|
Yoke Style |
ISR |
|
Hub Diameter R |
2.000 |
|
C/L To End Hub S |
2.500 |
|
Type |
Straight Round Hole |
|
Inside Yoke Dimension (In) K |
1.500 |
|
Yoke Bearing Dimension (In) D |
0.938 |
|
Involute Spline |
No |
|
Hole Diameter (In) P |
1.250 |
|
Sae Keyway Width (In) X |
0.312 |
|
Set Screw Hole Diameter (In) |
0.375 |
|
Keyway Location W |
3 |
|
Set Screw Location W |
9 |
|
Length Thru Hole Q |
1.030 |
|
Joint Angle #1 |
60 |
|
Hole Diameter - Max |
1.2505 |
|
Hole Diameter - Min |
1.2495 |
|
Keyway Width - Max |
0.3155 |
|
Keyway Width - Min |
0.3135 |
