10-4-113 DSP Power Take Off PTO End Yoke 1000 1.125 Bore 0.312 Keyway 2"Hub
10-4-113 DSP Power Take Off PTO End Yoke 1000 1.125 Bore 0.312 Keyway 2"Hub
10-4-113 DSP Power Take Off PTO End Yoke 1000 1.125 Bore 0.312 Keyway 2"Hub

10-4-113 DSP Power Take Off PTO End Yoke 1000 1.125 Bore 0.312 Keyway 2"Hub

SKU: 10-4-113
Regular price
$34.00
Sale price
$34.00
Shipping calculated at checkout.

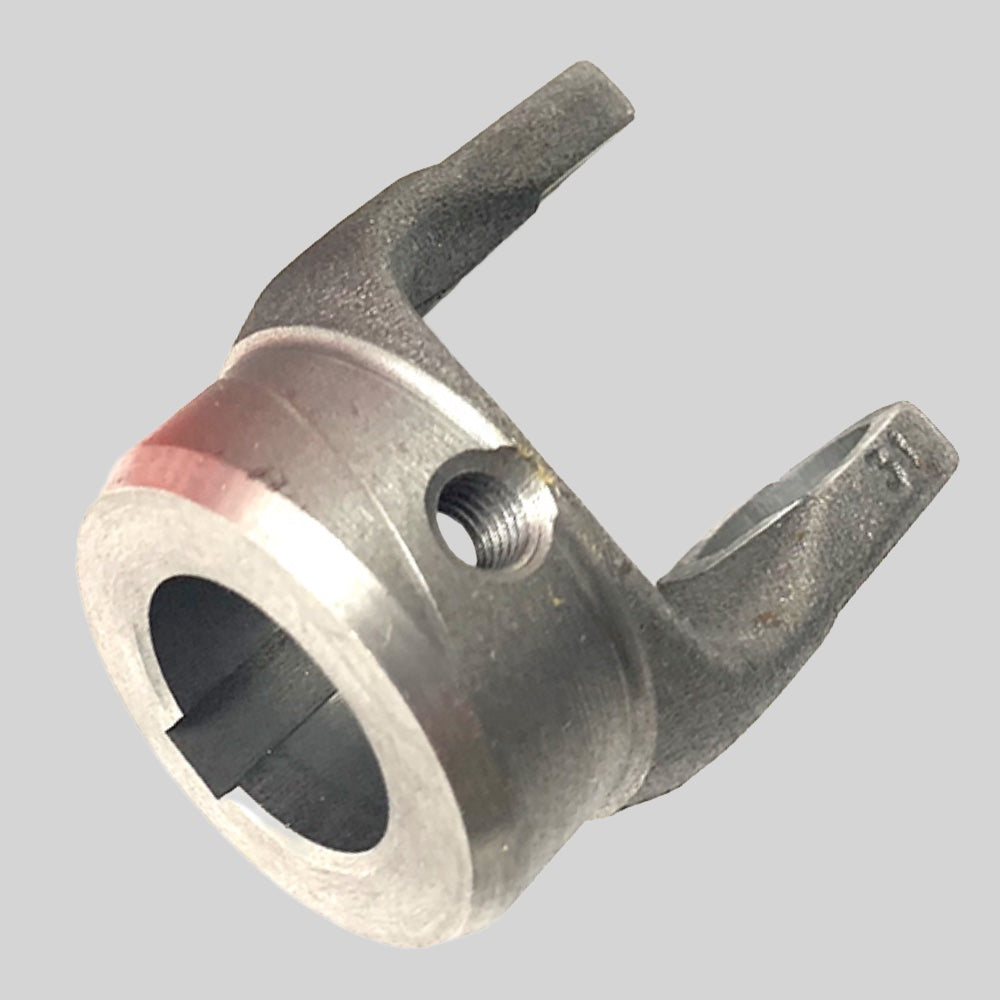

10-4-113 Power Take Off (PTO) End Yoke 1000 1.125 Bore 0.312 Keyway 2"Hub

Brand DSP

Series 1000

Yoke Style ISR

Hub Diameter R 2.000

C/L To End Hub S 2.500

Type Straight Round Hole

Inside Yoke Dimension (In) K 1.500

Yoke Bearing Dimension (In) D 0.938

Involute Spline N

Hole Diameter (In) P 1.125

Sae Keyway Width (In) X 0.312

Set Screw Hole Diameter (In) 0.375

Keyway Location W 3

Set Screw Location W 9

Length Thru Hole Q 1.030

Material Steel

Joint Angle #1 60
