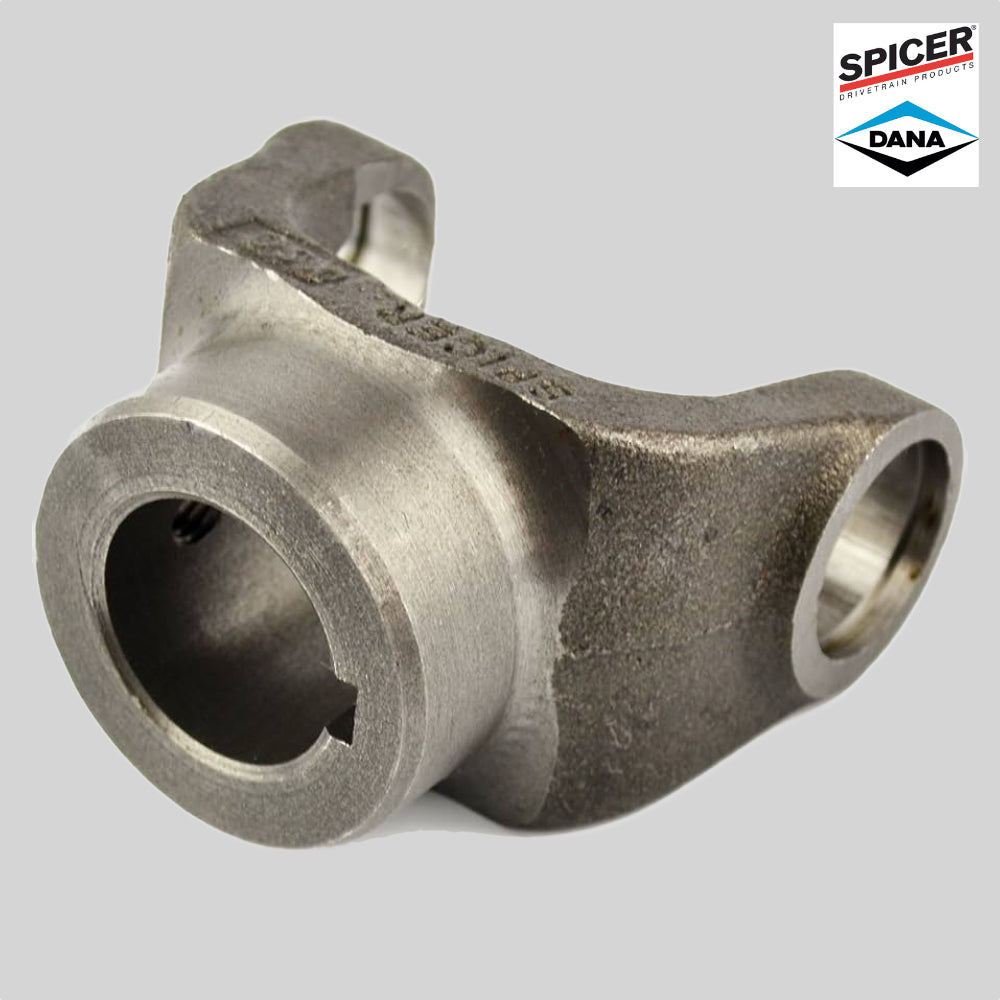

2-4-533 SPICER Drive Shaft Round Bore End Yoke 1310 Series 1.250 x 0.312

2-4-533 SPICER Drive Shaft Round Bore End Yoke 1310 Series 1.250 x 0.312

Part # / SKU: 2-4-533S

Brand: Spicer

Regular price $43.60 USD
Regular price Sale price $43.60 USD
Sale Sold out
Shipping calculated at checkout.
Stock Available: 2

2-4-533 Drive Shaft End Yoke

Brand Spicer

Series 1310

Yoke Style SR

Hub Diameter R 2.125

C/L To End Hub S 2.562

Type Straight Round Hole

Outside Yoke Dimension (In) E 3.469

Yoke Bearing Dimension (In) D 1.062

Involute Spline N

Hole Diameter (In) P 1.250

Sae Keyway Width (In) X 0.312

Set Screw Hole Diameter (In) 0.375

Keyway Location W 12

Set Screw Location W 6

VMRS 024001003

Material Steel

Joint Angle #1 17

Hole Diameter - Max 1.251

Hole Diameter - Min 1.250

Keyway Width - Max 0.3155

Keyway Width - Min 0.3135

Package Type EACH

Package Qty 1

Weight 1.7 LB

Country of Origin United States
